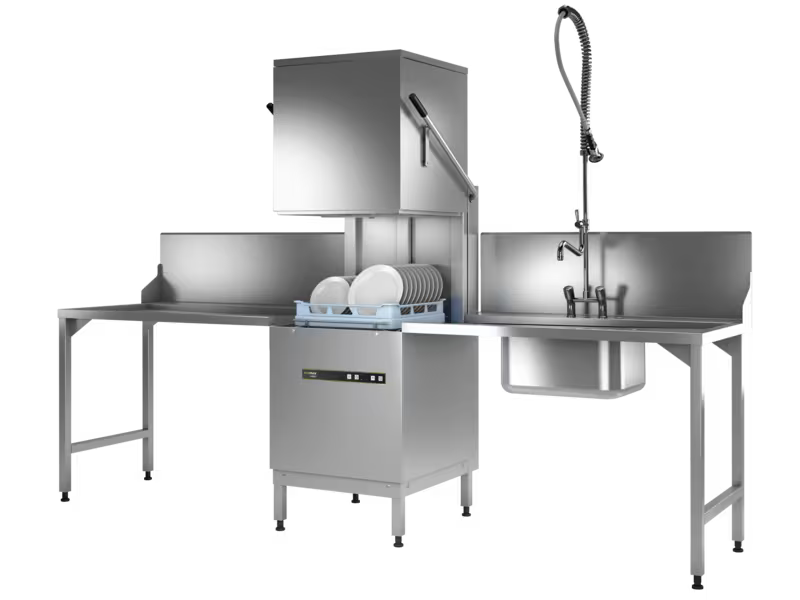

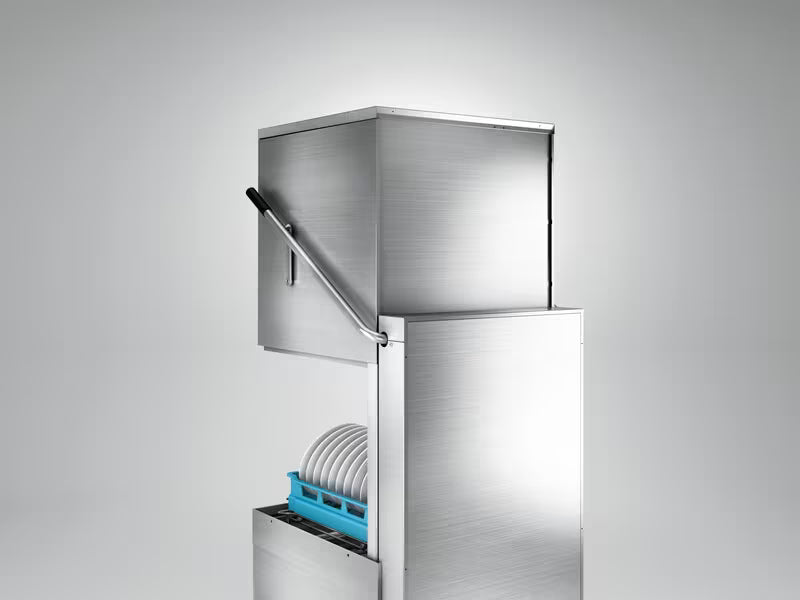

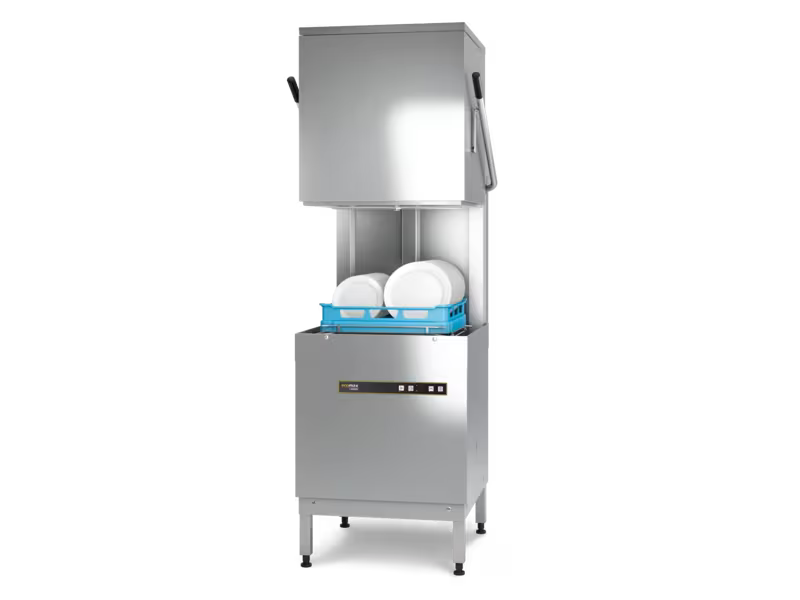

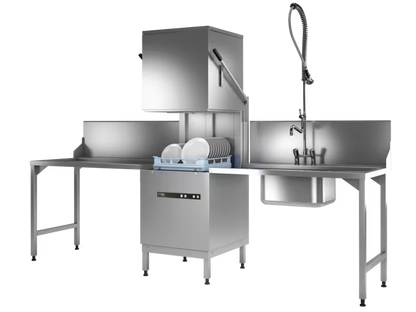

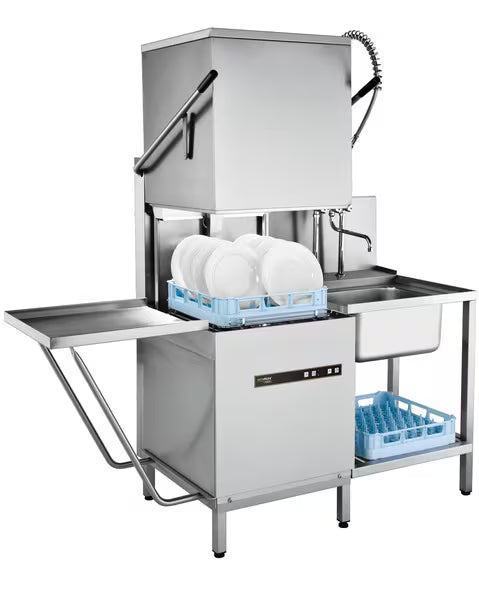

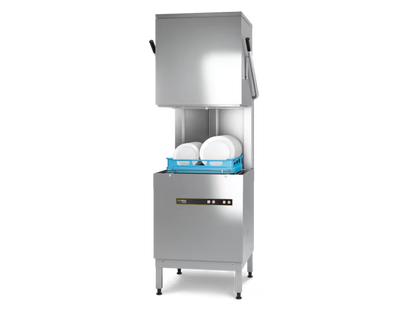

For more details on the Hobart Ecomax 604 Dishwasher, please see below or refer to the downloadable manufacturer specification sheet.
Features & Benefits
- Easy-to-use electronic controls with three automatic cycles (75 / 150 / 180 seconds).
- Digital temperature gauges for precise monitoring.
- Suitable for straight-through or corner operation, with a nominal capacity of up to 48 racks/hour, approx. 810 plates/hour or 2,160 glasses/hour (depending on configuration).
- Low water consumption: approx. 2.3 L rinse volume per cycle.
- Fully enclosed four-sided hood design which retains steam and energy, improving kitchen climate and reducing heat/humidity loss.
- Deep-drawn wash tank without welded corners (hygienic, easy to clean). Option for self-cleaning cycle.
- Rotating top & lower wash and rinse arms with wide-angle fan nozzles for even distribution of the wash/rinse water.
- Loading height up to ~440 mm, allowing large plates, trays or 1/1 GN pans (with optional tray rack).
- Ready to install: includes fill and drain hose, power cord (240 V/15 A), detergent & rinse aid dispensers, drain pump and back-flow preventer.
- Watermark approved for Australian compliance.
- Made in Germany—engineered for high demands in commercial kitchens.
Technical Data
- Cycle times: 75 / 150 / 180 sec
- Water consumption: approx. 2.3 L per rinse cycle
- Tank capacity: 21 L
- Loading height: approx. 440 mm
- Nominal capacity: Up to 48 racks/hour (approx. 810 plates/h or ~2,160 glasses/h)
- Total connected load: ~3.2 kW at 240 V / 15 A (standard single phase)
- Construction: Stainless steel tank and housing, fully enclosed 4-sided hood
If you have any further questions about the Hobart Ecomax 604 Dishwasher, please call our friendly and expert team on 1300 131 700 for helpful advice.
